A research project to determine the feasibility of subsea datacenters powered by offshore renewable energy

Project Natick seeks to understand the benefits and difficulties in deploying subsea datacenters worldwide. Phase two extends the research we accomplished in phase one by deploying a full-scale datacenter module in the North Sea, powered by renewable energy.
This is the continuing story of Project Natick.

Learn more about Project Natick research below or read the Natick story here and here.

Updates

On July 9th, 2020, Natick Northern Isles completed its mission at the bottom of the North Sea and was retrieved for analysis.

We are still reviewing the data, but here is what we already know:

Clip-art of a stopwatch with a checkmark

Reliability

The servers in Natick Northern Isles showed a failure rate of 1/8th that of our land-based control group.
Clip-art of a globe with location pins

Community Service

Natick was used to perform COVID-19 research for Folding at Home and World Community Grid.
The international recycling logo

Recycling

The steel pressure vessel, heat exchangers, servers, and all other components will be recycled.
Clip art drawing the sun over the ocean

Sea bed

The sea bed is being restored to the same state it was in before we deployed.

Facts and Figures

clip-art drawing of an ocean ship

Datacenter Designation

"Northern Isles"
(SSDC-002).
clip-art of a compass

Pressure Vessel Dimensions

12.2m length, 2.8m diameter (3.18m including external components); about the size of a 40' ISO shipping container you might see on a ship, train, or truck.
clip-art of a tape measure

Subsea Docking Structure Dimensions

14.3m length, 12.7m width.
clip-art of a wind turbine

Electrical Power Source

100% locally produced renewable electricity from on-shore wind and solar, off-shore tide and wave.
clip-art of an electrical plug

Electrical Power Consumption

240 KW.
clip-art of a stack of servers

Payload

12 racks containing 864 standard Microsoft datacenter servers with FPGA acceleration and 27.6 petabytes of disk. This Natick datacenter is as powerful as several thousand high end consumer PCs and has enough storage for about 5 million movies.
clip-art of a globe with location markers

Location

European Marine Energy Centre, Scotland, UK.
clip-art of a thermometer

Internal Operating Environment

1 atmosphere pressure, dry nitrogen.
clip-art of an hourglass

Time to Deploy

Less than 90 days from factory to operation.
clip-art of a stopwatch

Planned Length of Operation Without Maintenance

Up to 5 years.

Frequently Asked Questions

What is Project Natick?
  • Project Natick is a research project to build an underwater datacenter. Microsoft is investigating the numerous potential benefits that a standard, manufacturable, deployable undersea datacenter could provide to cloud users all over the world.

  • The Natick Phase 1 vessel was operated on the seafloor approximately one kilometer off the Pacific coast of the United States from August to November of 2015.

  • Phase 2 of Natick aims to demonstrate that we can economically manufacture full scale undersea datacenter modules and deploy them in under 90 days from decision to power on. The Phase 2 vessel was deployed at the European Marine Energy Centre located in the Orkney Islands, UK in June of 2018.

  • Project Natick reflects Microsoft’s ongoing quest for cloud datacenter solutions that offer less resource intensive options, rapid provisioning, lower costs, and high agility in meeting customer needs.
Why Project Natick?
Project Natick is focused on a cloud future that can help better serve customers in areas which are near large bodies of water (where nearly 50% of society resides). The vision of operating containerized datacenters offshore near major population centers anticipates a highly interactive future requiring data resources located close to users. Deepwater deployment offers ready access to cooling and a controlled environment, and has the potential to be powered by co-located renewable power sources.
What are the customer benefits of Project Natick?
  • Rapid provisioning: Able to deploy a datacenter at scale from start to finish in no more than 90 days.
    • Enables rapid response to market demand.

  • Latency: Latency is how long it takes data to travel between its source and destination. Half of the world’s population lives within 200 km of the ocean so placing datacenters offshore increases the proximity of the datacenter to the population, dramatically reducing latency and providing better responsiveness. Signals travel around 200 km/millisecond across the Internet, so if you are 200 km away one round trip to the datacenter takes about 2 milliseconds but if you are 4000 km away each round trip takes 40 milliseconds.
    • For example, if you are playing a video game like Minecraft, latency would affect how fast the blocks you place show up in the game. Or if you are browsing the web, latency could affect how long it takes to completely paint a new webpage with lots of content. Modern television at 30 frames per second is just 33 milliseconds per frame. Some videogames exceed 100 frames per second or just 10 milliseconds per frame.

  • Sustainability: We aspire to create a sustainable datacenter which leverages locally produced green energy, providing customers with additional options to meet their own sustainability requirements.
    • Natick datacenters are envisioned to be fully recycled. Made from recycled material which in turn is recycled at the end of life of the datacenter.
    • A Natick datacenter co-located with offshore renewable energy sources could be truly zero emission: no waste products, whether due to the power generation, computers, or human maintainers are emitted into the environment.
    • We see this as an opportunity to field long-lived, resilient datacenters that operate “lights out” – nobody on site – with very high reliability for the entire life of the deployment, possibly as long as 10 years.
    • Natick datacenters consume no water for cooling or any other purpose.

How would a Natick datacenter impact the environment?
We aspire to create a sustainable datacenter which leverages locally produced green energy, providing customers with additional options to meet their own sustainability requirements.
  • Natick datacenters are envisioned to be fully recycled. Made from recycled material which in turn is recycled at the end of life of the datacenter.
  • A Natick datacenter co-located with offshore renewable energy sources could be truly zero emission: no waste products, whether due to the power generation, computers, or human maintainers are emitted into the environment.
  • We see this as an opportunity to field long-lived, resilient datacenters that operate “lights out” – nobody on site – with very high reliability for the entire life of the deployment, possibly as long as 10 years.
  • Natick datacenters consume no water for cooling or any other purpose.
How long was the Phase 2 vessel in the water?
Microsoft’s Project Natick team deployed the Northern Isles datacenter 117 feet deep to the seafloor in June 2018. For the next two years, team members tested and monitored the performance of the datacenter’s servers.
What other Microsoft groups are supporting Project Natick?
Project Natick is a complementary effort bolstering Microsoft’s ever evolving datacenter ecosystem. The researchers have collaborated with employees from across Microsoft, especially from Microsoft’s Cloud and Enterprise Group, who have contributed their expertise to the project in such diverse areas as server design, datacenter cooling and electrical architecture, network provisioning, sustainability, reliability analysis, and economic modeling.
What did you learn?
  • In Phase 1, we confirmed that we can successfully deploy and operate datacenter equipment in an undersea environment. Challenges our prototype tackled included cooling large scale electronics and withstanding the effects of biofouling.
  • In Phase 2, we confirmed that we can economically manufacture full scale undersea datacenter modules and deploy them in under 90 days from decision to power on.
  • With the retrieval and preliminary analysis of the phase 2 vessel, we’ve now confirmed that not only can we successfully deploy, operate, and scale an undersea datacenter, but also that this more sustainable approach actually improves the performance and reliability of the datacenter when compared to land. Project Natick had 1/8th the failure rate of land datacenters. Not only is a greener future possible, but it is economically practical.
What are the key factors that contributed to Project Natick’s greater reliability?
We believe that the atmosphere of nitrogen, which is less corrosive than oxygen, and the absence of people to bump and jostle components, are the primary reasons for the difference. If the post-deployment analysis proves this hypothesis correct, we may be able to translate the benefits to land datacenters.
How does Microsoft plan to use these learnings in its own datacenters?
  • The proven reliability of underwater datacenters has informed efforts to serve customers who need to deploy and operate tactical and critical datacenters anywhere in the world.
  • Lessons learned from Project Natick are further informing Microsoft’s datacenter sustainability strategy around energy, waste, and water.
What is different about Phase 2?
Phase 1 demonstrated the feasibility of the subsea datacenter concept, including our ability to remotely operate a Lights Out datacenter* for long periods of time, operating with a highly efficient PUE (power usage effectiveness is total power divided by server power; lower values are better, 1.0 is perfect) of 1.07, and using no water at all, for a perfect WUE (water usage effectiveness is the liters consumed per megawatt of power per minute; lower values are better, 0 is best) of exactly 0 vs land datacenters which consume up to 4.8 liters of water per kilowatt-hour.
For Phase 2, our goals are to:

  • Develop one full scale prototype subsea datacenter, which could be used as a modular building block to aggregate subsea datacenters of arbitrary size

  • Gain an understanding of the economics of undersea datacenter TCO (total cost of ownership is the full lifetime cost of a datacenter including manufacture, deployment, operations, and recovery) should we proceed to commercial deployment

  • Efficiently deploy this prototype in coastal waters (within 12 nautical miles of land) at a depth of no more than 328 feet (100 meters)

  • Demonstrate Lights Out operation during a deployment cycle of up to 5 years

  • Power the prototype from a nearby marine renewable energy source; and

  • Explore cloud datacenter solutions that offer less resource intensive options
We anticipate that Phase 2 will surface design and operational issues that may require further refinement post-deployment and should be captured during Phase 2 to inform subsequent work, in particular, productization.

* A lights out data center is a server or computer room that is physically or geographically isolated, thereby limiting environmental fluctuations and human access. Unnecessary energy used for lighting and for maintaining a proper climate around frequently used doors can be saved by going lights out.
Is a Natick datacenter renewable/recyclable?
Our vision is for Natick datacenter deployments of up to 5 years, which is the anticipated lifespan of the computers contained within the vessel. After each 5-year deployment cycle, the datacenter vessel would be retrieved, reloaded with new computers, and redeployed. The target lifespan of a Natick datacenter is at least 20 years. After that, the datacenter is designed to be retrieved and recycled.
Are there other similar efforts in Microsoft Research to improve the sustainability of datacenters?
Both Microsoft Research and Microsoft Cloud and Enterprise, the business unit responsible for Microsoft’s datacenters, have ongoing research projects and specific initiatives focused on reliability, renewable energy, energy efficiency, and other efforts to improve the sustainability of our datacenters.
When will Natick datacenters be more widely available in a product?
Project Natick is currently at the research stage. It’s still early days in evaluating whether this concept could be adopted by Microsoft and other cloud service providers.
What does the name Natick mean?
Natick is a codename and carries no special meaning. It is a town in Massachusetts.
Does Natick use AI?
Natick uses AI to monitor the servers and other equipment for signs of failure and to seek to identify any correlations between environment and server longevity. Because Natick operates like a standard land datacenter, the computers inside Natick can be used for machine learning to provide artificial intelligence to other applications just as in any other Microsoft datacenter.
How are Natick datacenters powered?
For this Phase 2 deployment, the Natick datacenter is connected to the Orkney power grid in Scotland. The Orkney Islands produce enough renewable energy to power the islands, our datacenter, and feed the remaining renewable energy back to the main Scottish power grid. This renewable energy is a mix of off-shore wave and tide, and on-shore wind and solar. More here.

Future Natick research will explore directly powering a Natick datacenter by a co-located ocean-based green power system, such as offshore wind or tide, with no grid connection. By co-locating with a green power source, undersea datacenters can help the environment and reduce strain on overstressed electric grids. Or even bring both electricity and the cloud to underserved communities around the globe.

The Team

Ben Cutler profile picture
Ben Cutler
Project Manager
Spencer Fowers profile picture
Spencer Fowers
Research & Engineering
Eric Peterson profile picture
Eric Peterson
Mechanical Engineer

Mike Shepperd profile picture
Mike Shepperd
IT Engineering



Our industry does not respect tradition. It only respects innovation.

Satya Nadella

One doesn't discover new lands without consenting to lose sight, for a very long time, of the shore.

André Gide French author and Nobel Prize winner

The greatest threat to our planet is the belief that someone else will save it.

Robert Swan

There's a way to do it better - find it.



Thomas Edison

There are no passengers on spaceship earth. We are all crew.



Marshall McLuhan

It always seems impossible until it's done.



Nelson Mandela

Natick Phase 2 Timeline

After the success of the first phase of project Natick, we immediately set to work on Phase 2.

Phase 2 Planning

We had a few major goals in mind: make it full scale, deploy it deeper and in harsher conditions, and power it with completely renewable energy.

The Natick team in a planning meeting for phase 2.
9/15

Request for Information

An RFI was issued seeking information about the feasibility of deploying a Natick datacenter in the ocean powered by renewable energy.

Microsoft sent out an RFI to a number of ocean engineering and renewable energy companies in late 2015
12/15

Request for Proposals

A select group of marine organizations was invited to present proposals to realize our vision for Natick Phase 2.

3/16

Naval Group Selected

From a very strong field of proposals, we selected Naval Group and its subsidiary, Naval Energies to lead design, fabrication, and deployment of the Phase 2 datacenter.

Microsoft Selects Naval Group
11/16

Design Complete

We designed subsea equivalents of all elements typically found in a land datacenter including networking, electrical and cooling systems, environmental monitoring, and more.

Eric Peterson reviews completed design of the Natick North Seas.
10/17

Fabrication Complete

Fabrication of datacenter complete. All IT equipment installed and tested. The vessel is shipped to Stromness, UK.

The IT equipment is inserted into the pressure vessel prior to shipment to the UK.
5/18

Deployment

The Natick Phase 2 vessel, "Northern Isles", was deployed at the European Marine Energy Centre on June 1st, 2018.

The pressure vessel ready to be moved to deployment site.
6/18

Operations

Natick Northern Isles was used by more than 18 groups inside Microsoft

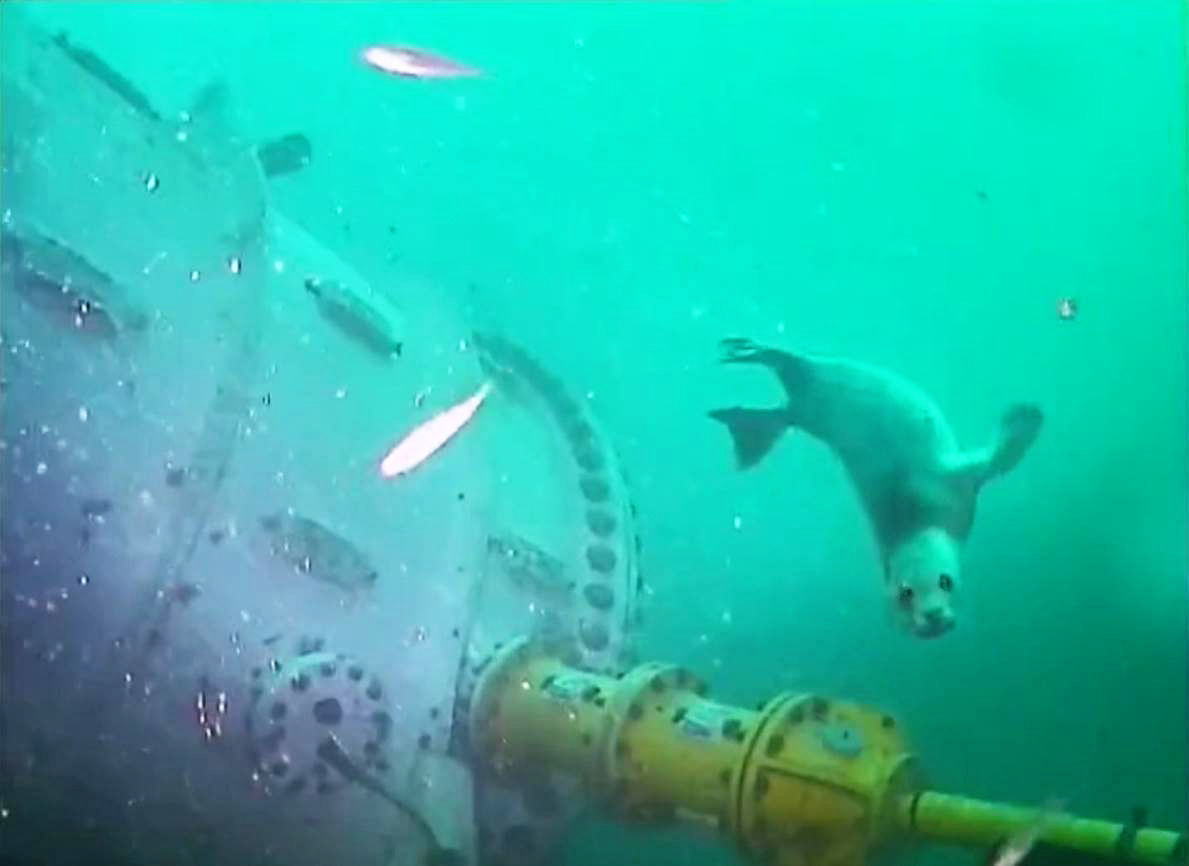

The pressure vessel at the bottom of the ocean during deployment as seen from a survey ROV
6/18

Pandemic Work

Natick Northern Isles was re-tasked to provide additional resources for COVID-19 vaccine research via Folding at Home and World Community Grid

CDC rendering of the novel corona virus
3/20

Retrieval

After more than 2 years at the bottom of the ocean, Natick Northern Isles was retrieved for analysis.

CDC rendering of the novel corona virus
7/20

What's Next?

Look for more information here soon!

Reflection of Northern Isles pressure vessel

Earlier Natick Phase 2 Publications

Microsoft’s undersea datacenter helps the hunt for a COVID-19 vaccine

Natick was used to test Microsoft Research's first post-quantum cryptography software

BBC: Microsoft sinks data centre off Orkney

Business Insider: Photos show how Microsoft took a big step forward in its crazy plan to power the internet from the sea

The Verge: Microsoft sinks a data center off the Scottish coast

Gizmodo: Microsoft's Newest Data Center Is a Giant Metal Can at the Bottom of the Sea

Huffington Post: Microsoft Has Dropped A Data Centre To The Bottom Of The Ocean - Here’s Why

CNBC: Microsoft deploys an underwater submarine-like data center to boost internet speeds

Microsoft News: Under the sea, Microsoft tests a datacenter that’s quick to deploy...

Azure Blog: Monitoring environmental conditions near underwater datacenters using Deep Learning

Our Locations

Headquarters:
One Microsoft Way
Redmond, WA 98052

Phase 1 Deployment:
Somewhere off the Pacific coast of the United States

Phase 2 Deployment:
EMEC, Orkney Islands, Scotland, UK
General Inquiries: natick@microsoft.com
Media Inquiries: natick-media@microsoft.com
Project Natick Press Kit

Natick Phase 1

It all started in 2013 when Microsoft employee, Sean James, who served on a US Navy submarine submitted a ThinkWeek Paper. Norm Whitaker read the paper and built a team to explore the idea of placing computers or even entire datacenters in water. In late 2014, Microsoft kicked off Project Natick. The rest is history.

Initial White Paper

A Microsoft white paper comes to the attention of senior leaders. It describes an underwater datacenter, powered by renewable ocean energy.

02/13

Project Natick Begins

Project begins with kickoff meeting in Redmond.

08/14

Project Natick Operational

The Leona Philpot is christened and deployed off the coast of California.

Peter Lee christens the Leona Philpot with a bottle of champaign
08/15

Testing

The Leona Philpot system is thoroughly tested and monitored.

The graphs scroll by showing what's going on in the system below the ocean

Project Natick returns to Redmond

After a very successful series of tests, the Leona Philpot is lifted out of the water and is brought back to Redmond for analysis and refitting.

The Leona Philpot is on a truck being driven down a highway
12/15
